Crank Storyboard and Renesas MPUs:
Bringing Rich GUIs for Embedded to Life

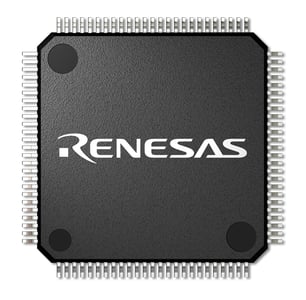

Improve UI development and streamline workflow for feature-rich human-machine interface (HMI) applications with Crank Storyboard and the Renesas RZ/A microprocessor. Deploying Crank Storyboard on innovative RZ/A microprocessors enables developers to bring differentiated devices with advanced UIs to market more quickly and cost effectively by simplifying the UI development process.



Try Renesas with Storyboard

Download one of our sample demo images and interact with a Storyboard created GUI on your Renesas target device and experience its high responsiveness for yourself.

Don't see yours listed? Contact us and we'll make it happen.

Download Demo Images


Storyboard + Renesas RZ/A1 Running XIP Linux

This demo showcases home-security and washing machine applications built with Crank Storyboard for the Renesas RZ/A1 MPU running XIP Linux. The video shows the applications running directly on hardware, with touch interaction.

Storyboard made something possible that none of our competitors can come even close to reproduce.
Henk Bezuidenhout
Embedded IQ

Try a Storyboard GUI on the RZA1H

Setting on using the Renesas RZ/A1H Microprocessor for your target, and in need of a high-performance UI? Download these samples images created specifically for the RZ/A1H and see Storyboard in action.

Download Demo Images

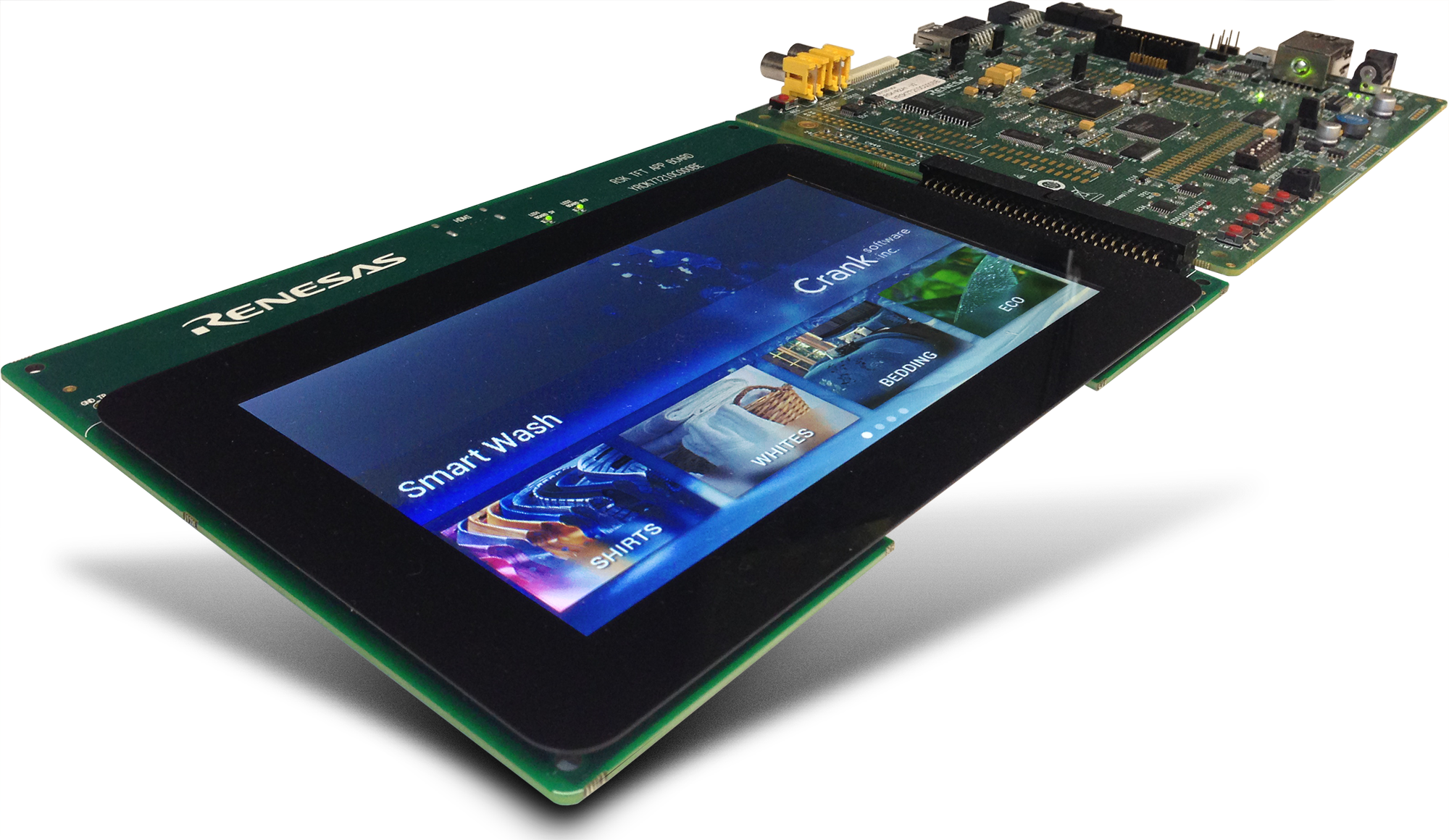

XIP Linux Crank GUI Demo for the RZ/A1 RSK Board

This demo illustrates the caliber of human-machine interface (HMI) application that can be developed using Crank Storyboard and execute-in-place (XIP) Linux on the Renesas RZ/A1 microprocessor (MPU). The Renesas RZ/A1 MPU’s unique architecture – with up to 10 megabytes (MB) of on-chip RAM and the ability to execute in place from inexpensive QSPI flash memory – eliminates the need for SDRAM from Linux systems, enabling high performance, low-cost systems and simple board design.
