Storyboard and QNX Software Systems platforms deliver beautiful graphical user interfaces efficiently and without compromise.

Dramatically reduce application GUI development time without sacrificing design quality with Storyboard for QNX Software Systems platforms. Storyboard's collaborative and intuitive capabilities enable teams to quickly design sophisticated, appealing GUIs for embedded applications.

Storyboard was made to support QNX.

Storyboard makes it easy to create an HMI on the QNX platform within a short period of time. We've supported QNX since day one, which makes integration with their OS natural and intuitive. Storyboard puts the right tools in the right hands: designers can start in Figma or Photoshop or Sketch and import artwork without having to get deep into code, while developers can work in parallel on the system integration and code in Storyboard's Eclipse development environment, reducing a significant amount of churn that's common in a serial, traditional workflow.

Medical GUI design for safe experiences

Learn best practices for user-friendly graphical user interface (GUI) design and how to build a safe and secure device, on the QNX OS. Our panelists share real-world use cases of medical embedded devices using the NXP i.MX8 as a reference.

Watch the video▸

QNX-Toradex-webinar-Safety-UX-How-to-develop-for-both-in-medical-graphical-user-interfaces

During the ordinary design process there is usually a lot of churn, but because of Crank’s tool, the churn has been reduced significantly. Crank Software allows us to take a Photoshop file into a live design in a very short period of time.

True Nguyen

User Experience Designer, QNX Software Systems

Crank on the QNX Auto Blog

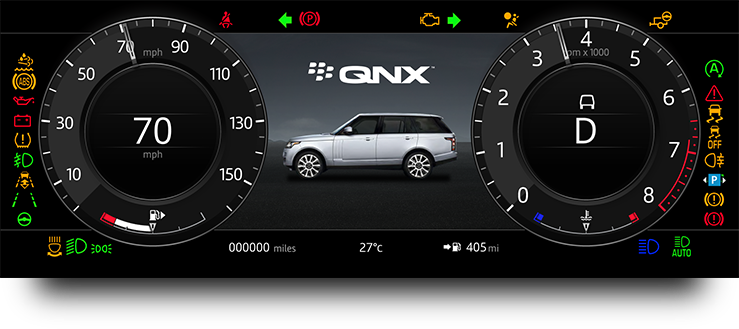

What do you need to keep in mind when designing stunning automotive GUIs to visualize vital data? Crank Software's Vice President of Sales and Marketing, Jason Clarke, talks about designing digital instrument clusters on the QNX Auto Blog.

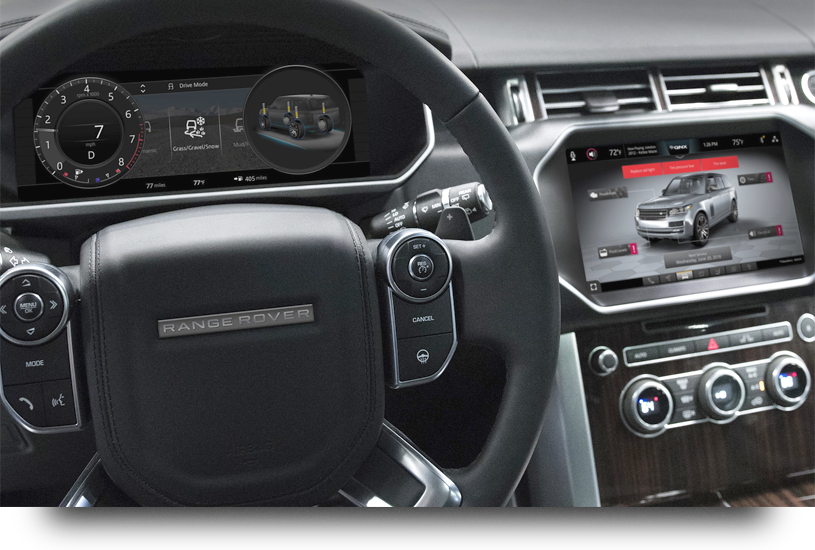

crank-software-qnx-Range-Rover-Cluster-UI
